LONG ARM COMPOUND FEED HEAVY DUTY LOCKSTITCH MACHINE


THIS POWERFUL UNISON FEED MACHINE EQUIPPED WITH LARGE CAPACITY SHUTTLE AND BUILT-IN BOBBIN WINDER, SUITABLE FOR STITCHING ALL THE EXTRA HEAVY WEIGHT MATERIALS SUCH AS THE BAG HANDLES, POUCHES, GLOVES, SAFETY BELTS, TENTS, SEATS, SOFAS, SHOES, BAGS, ECT.



TK-441 (COMPOUND FEED)
TK-471 (UPPER AND LOWER FEED)
TK-243 (COMPOUND FEED)
TK441/471
TTK-243
SPEED
800 S.P.M.
MAX. STITCH LENGTH
11 MM
15MM
PRESSER FOOT LIFT
12 MM (BY HAND LIFTER)
20 MM (BY PEDAL)
CYLINDER DIAMETER
81 MM
NEED BAR STROKE
56 MM
HOOK
SEMI-ROTARY LARGE HOOK
WORKING SPACE
420 MM
NEEDLE
DY X 3 #26 (#21~#28)
THREAD
#8~#0
MOTOR
1/2 H.P. CLUTCH MOTOR
N.W.
53 KGS
60 KGS
G.W.
78 KGS
71 KGS
MEASUREMENT
0.296 CBM
0.204 CBM


CYLINDER BED LONG ARM COMPOUND FEED HEAVY DUTY LOCKSTITCH MACHINE

TK-461
  • EXTRA LONG ARM FOR ROOMY WORKING SPACE.
  • LARGE SHUTTLE HOOK AND BOBBIN CASE ENSURE THAT THE SEWING EFFICIENCY IS GREATLY IMPROVED ESPECIALLY WHEN THICKER THREAD IS USED.
  • THE BUILT-IN BOBBIN WINDER IS LOCATED WITHIN THE OPERATOR'S CONVENIENT REACH.
SPECIFICATIONS:
MAX.SEWING SPEED : 650 S.P.M.
MAX. STITCH LENGTH : 11 MM
PRESSER FOOT LIFT : 12 MM (BY HAND LIFTER)
  : 20 MM (BY PEDAL)
NEED BAR STROKE : 56 MM
NEEDLE : DY X 3 #26
WORKING SPACE : 950 MM
MOTOR : 3/4 H.P. ELECTRONIC MOTOR
N.W. : 110 KGS
G.W. : 150 KGS
MEASUREMENT : 0.4 CBM

COMPOUND FEED HEAVY DUTY LOCKSTITCH SEWING MACHINE

TK-86 (LARGE HOOK)

THIS MACHINE WITH A VERTICAL HOOK, IS IDEAL FOR SEWING HEAVY WEIGHT MATERIALS... TENTS, AWNINGS, SEATS, LEATHER COATS, GLOVES, AUTO SEATS, VINYL GOODS, CANVAS SHEET, ETC.






SPECIFICATIONS:
SPEED : 2,700 S.P.M.
MAX. STITCH LENGTH : 8.5 MM
PRESSER LIFT : 11 MM
HOOK : LARGE
NEEDLE : DP X 3 #23
MOTOR : 1/3 H.P. or 1/2 H.P CLUTCH MOTOR
N.W. : 33 KGS
G.W. : 41 KGS
MEASUREMENT : 0.08 CBM

COMPOUND FEED HEAVY DUTY LOCKSTITCH SEWING MACHINE

TK-8BL

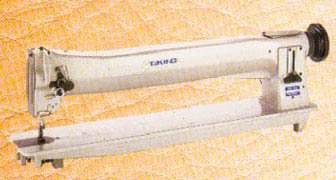

TK-98 (LONG ARM)

THESE HEAVY DUTY LOCKSTITCH MACHINES ARE FOR SEWING HEAVY WEIGHT MATERIALS SUCH AS TENTS, AWNINGS SEATS, LEATHER COATS, GLOVES, AUTO SEATS, VINYL GOODS, CANVAS SHEET, ETC.


ITEMS
MODEL

TK-8BL
TK-98
SPEED
2400 S.P.M.
1800 S.P.M.
MAX. STITCH LENGTH
8.5 MM
8.5 MM
PRESS FOOT LIFT
11 MM
11 MM
NEEDLE BAR STROKE
33 MM
33 MM
WORKING SPACE
280 MM
760 MM
NEEDLE
DY X 17 #22
DY X 17 #22
MOTOR
1/3 H.P. OR 1/2 H.P CLUTCH MOTOR
3/4 H.P CLUTCH MOTOR
N.W.
28 KGS
63 KGS
G.W.
34 KGS
87 KGS
MEASUREMENT
0.086 CBM
0.22 CBM
